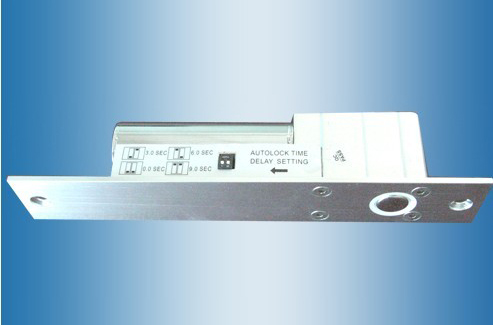

Products model:EL200SL
Products name:EL200SL low temperature electronic locks
Lock body size:205x35x40(mm)
Stricke Plate:90L x 25W x2H(mm)
Cover Plate:217L x 47W x 0.8H (mm)

Bolt:16mmDIA,stainless 16mm throw
working voltage:12V

working current:0.09A

Starting Current:0.8A
Quality:Aluminium panel with strongly style and Stainless steel

delayTime:0/3/6/9sec.(optional)
Signal Output:Door status sensor
Fail Safe:Locked when energized
Safety function: Double protect current, protect against damage Built-in voltage spike suppressor
Performance Testing:five hundred thousand times aging test
Patent Designed:low temperature
Opening Mode:180 degree swinging door
Suitable For:Wooden Door, Glass Door, Metal Door, Fire Proof Door.
Authority Certification:CE & MA approved
Quality Guarantee:For two years(except that man-made and Force Majeure)
Net Weight:0.9kg
Standard packing:12pcs/box
